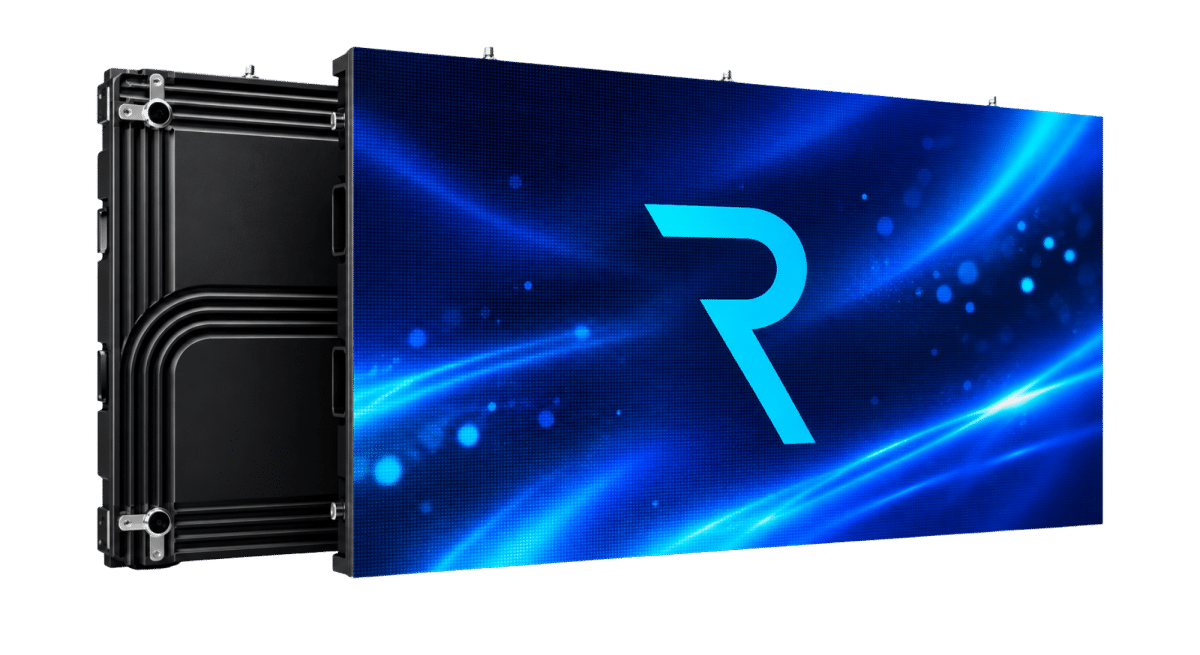

Sapphire Series Panel
<
Sapphire Series Panel

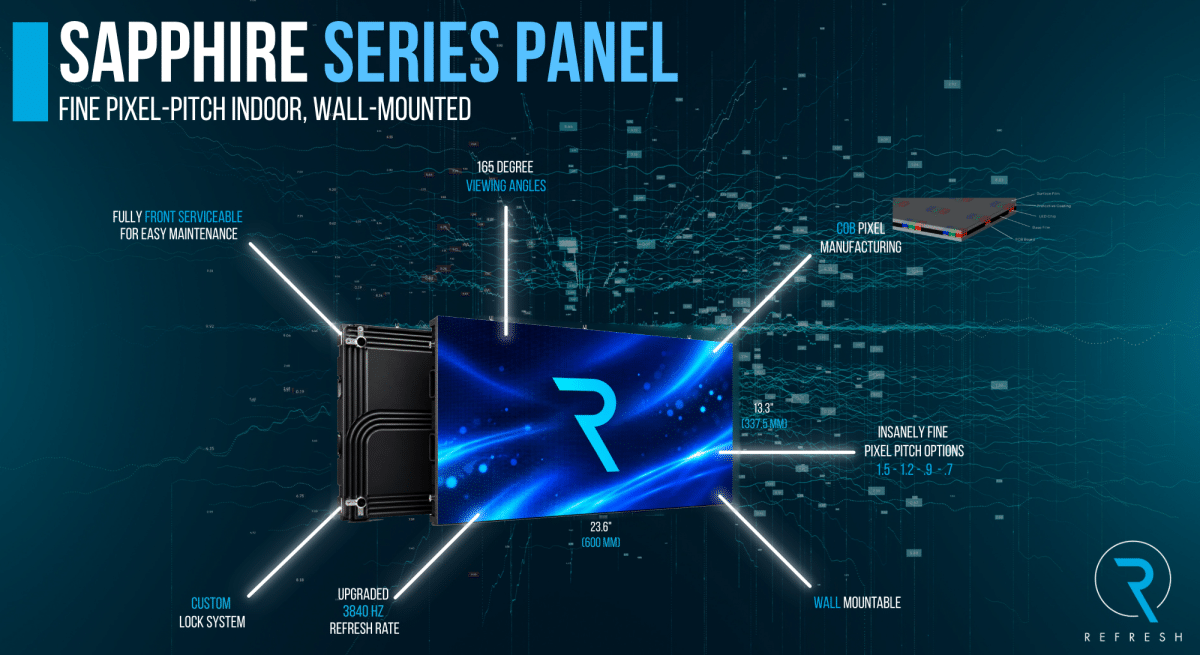

The Sapphire Series Panel is a fine pixel-pitch, wall-mounted display engineered for premium indoor installations where image clarity and reliability are non-negotiable. Built with COB (Chip-on-Board) pixel manufacturing, the Sapphire delivers exceptionally smooth, durable, and high-contrast visuals with superior protection against damage. With ultra-fine pixel pitches ranging from 0.7mm to 1.5mm, it produces stunningly detailed images ideal for close-viewing environments like boardrooms, studios, broadcast sets, and control rooms. Fully front-serviceable with a custom lock system, the Sapphire allows for fast, tool-free maintenance without pulling panels off the wall. Whether used in corporate, broadcast, or high-end commercial environments, the Sapphire Series ensures consistent brightness, wide 165° viewing angles, and true-to-life color for an immersive viewing experience.
Product Highlights:
• Ultra-Fine Resolution – Pixel pitches from 0.7mm to 1.5mm for insanely sharp, seamless visuals.
– COB Technology – Chip-on-Board manufacturing for enhanced durability, contrast, and viewing angles.
– Easy Access – Fully front-serviceable design with a custom lock system for fast, tool-free maintenance.

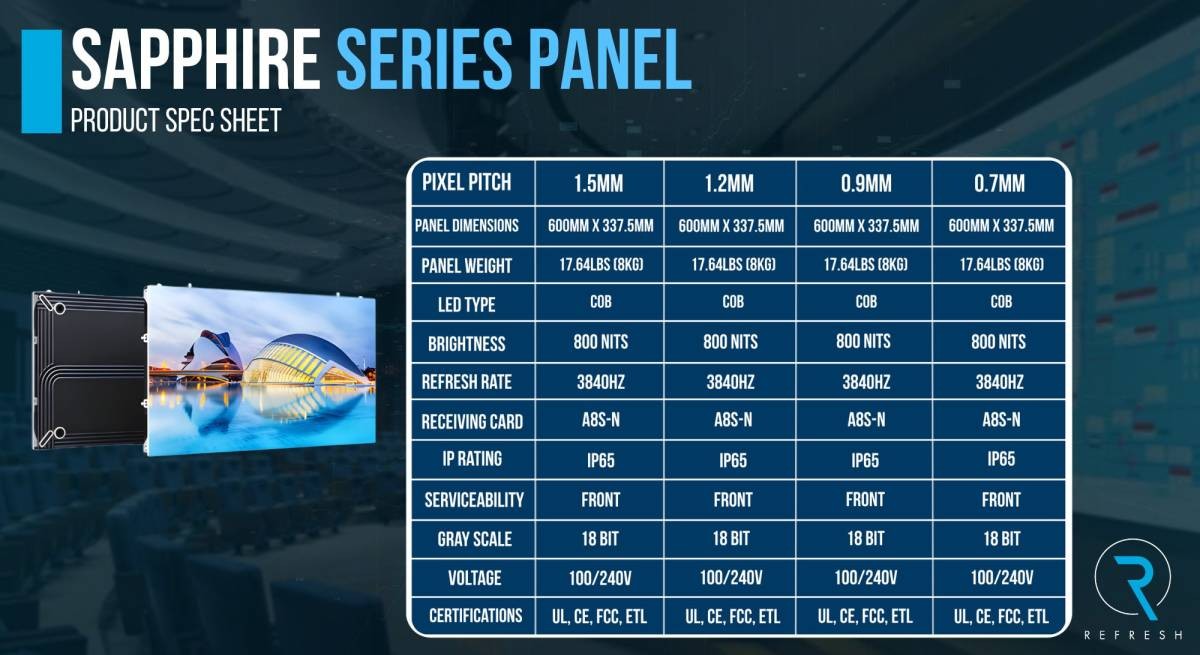

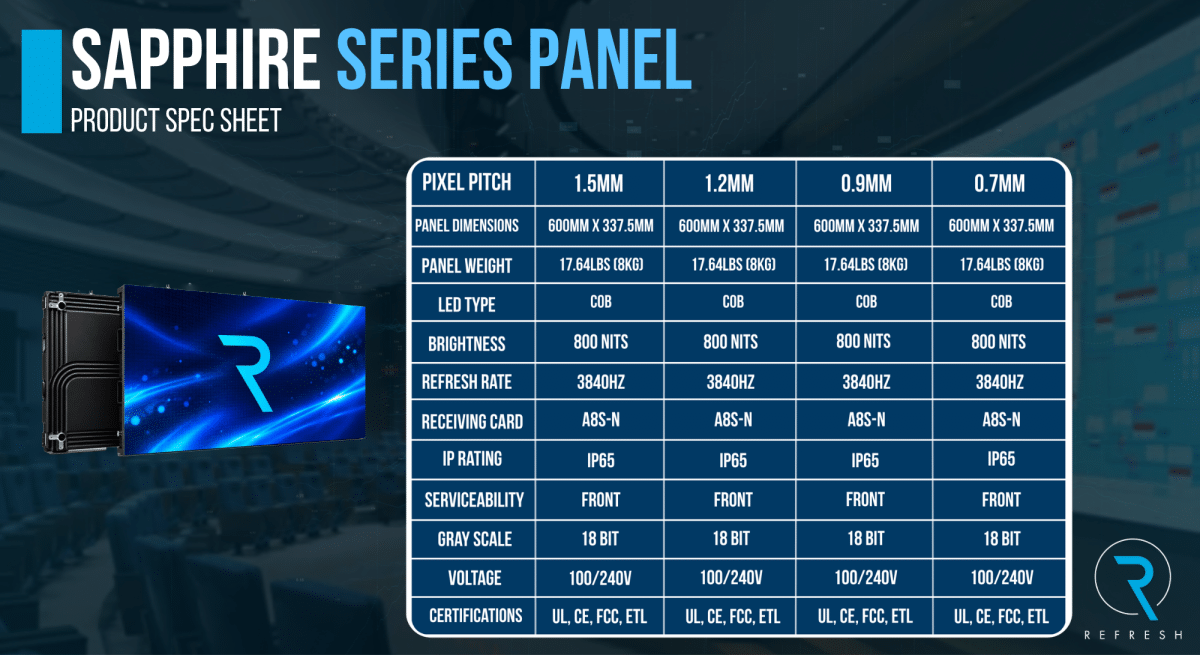

Key Specifications
| Feature | Specification |
| Pixel Pitch Options | 0.7mm, 0.9mm, 1.2mm, 1.5mm |
| Panel Dimensions | 600 mm × 337.5 mm (23.6″ × 13.3″) |
| Panel Depth | 1-7/8″ including mounting bracket |
| Weight | 17.64lbs per panel (8kg) |
| LED Type | COB (Chip-on-Board) |
| Brightness | 800 nits |
| Refresh Rate | 3,840 Hz |
| Viewing Angle | 165° |
| Grayscale | 18-bit |
| Receiving Card | A8S-N |
| IP Rating | IP65 |
| Serviceability | Full front access with custom lock system |
| Voltage Range | AC 100–240V |
| Certifications | UL, CE, FCC, ETL |
Where It Fits Best
- Corporate boardrooms and lobbies
- Broadcast and television studios
- University lecture halls and classrooms
- Retail and restaurant environments
- Houses of worship
- Conference centers and auditoriums
